3D CAD / DXF Export

To simplify the transition from an existing 3D CAD to a 2D CAD, it is not necessary to draw the specimen in the CAD editor of CIVA.

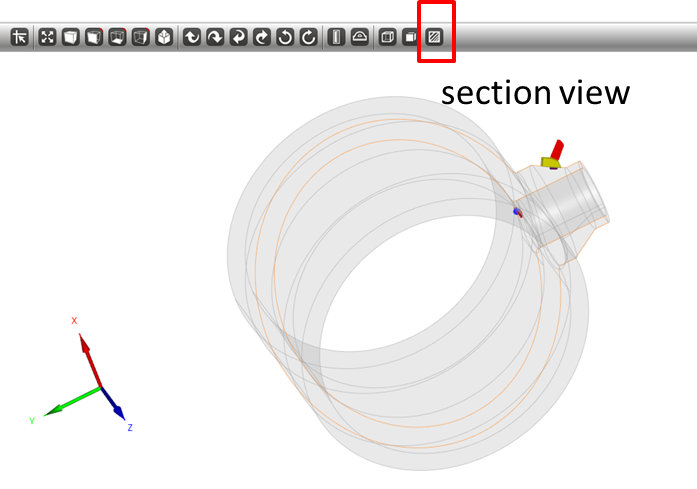

Simply display a section view of the 3D CAD, right click on the specimen, and select “Component”, “Export Profile to .dxf”.





The *.dxf profile that has been saved can then be imported into CIVA. Before launching calculations, you must reassign the right colors to the specimen surfaces, since all segments of the saved profile are in comment after the export.
