improve the reconstructed view in particular cases

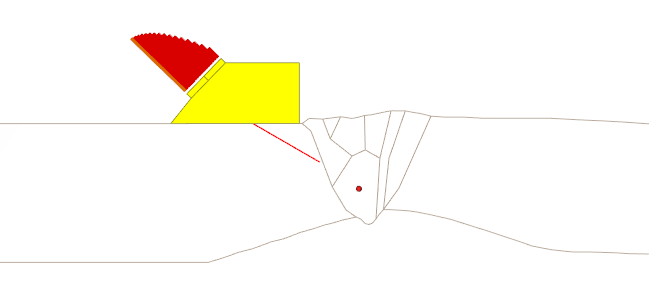

Presentation of the configuration

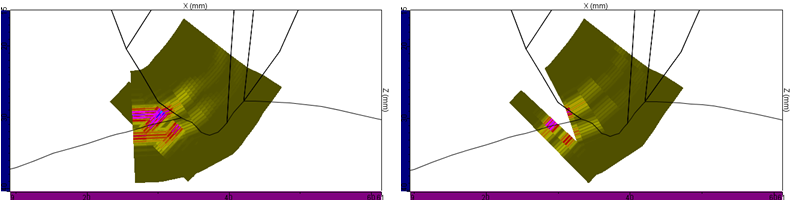

Typical phenomena of poorly reconstructed views



These behaviors are due to the fact that data is reconstructed along a path based on the central ray and, in some cases, this ray can be locally affected (e.g. : particular incidence compared to an interface, impact point of the ray on a junction between several interfaces, etc.).

In order to bypass this problem, the “Smoothing” option is very useful. It is located in the toolbox at the bottom of the screen.



“Smoothing” option in the toolbox



Compared to the left view of the second image above, the use of the “Smoothing” option gives a much better reconstructed view.



Reconstructed view by using the “Smoothing” option
