Inspection of a 2D CAD specimen by the extruded side

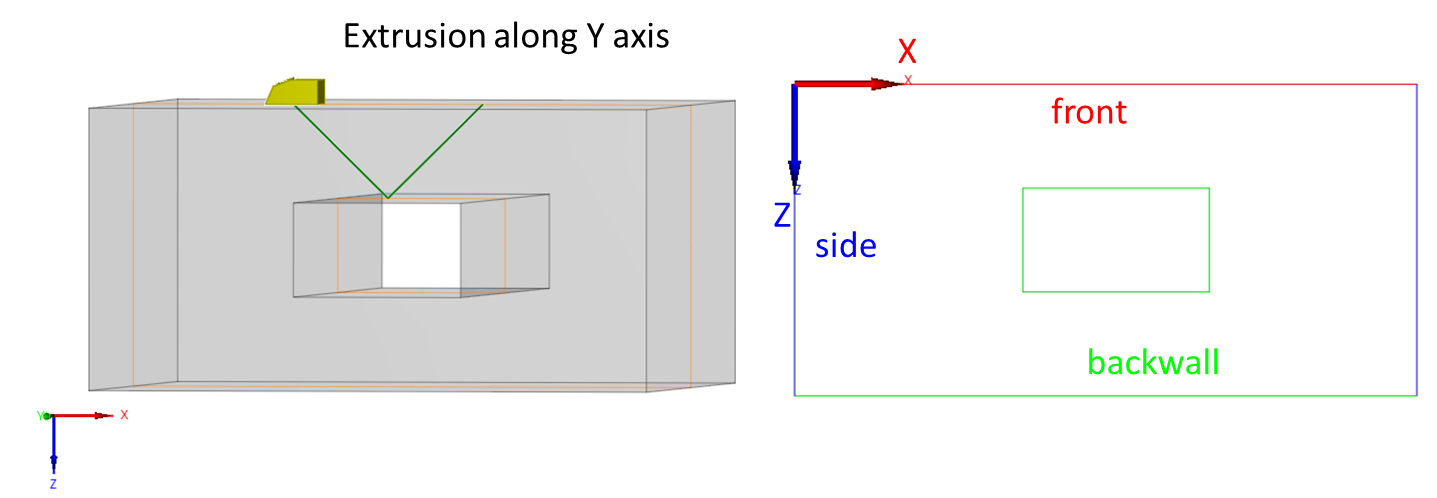

By default, the profile extrusion is along the Y axis.

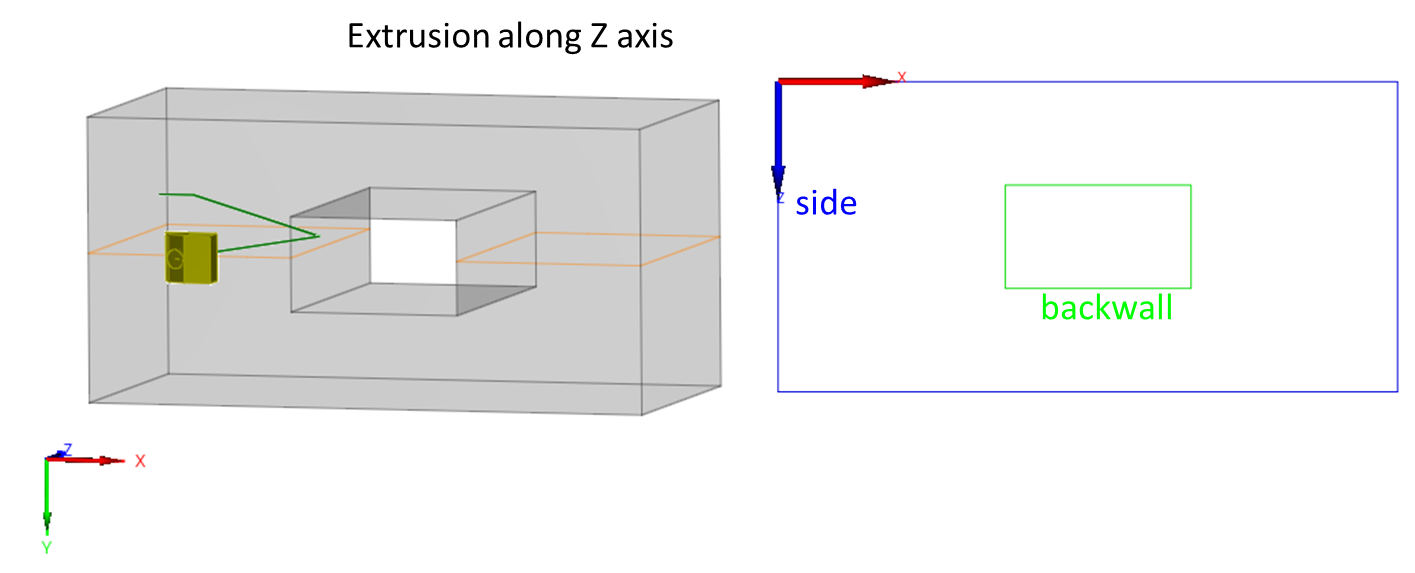

An extrusion along the Z axis enables the simulation of an inspection from the extruded face. To do so, draw all the surfaces of the profile to be extruded in blue (side) or green (backwall). The color should be chosen according to the simulation settings. In the example below, the hole is drawn in green so it is possible to calculate echoes after skips on its surfaces.
